Evo DAC Two 384/32 and DSD

Úvod Elektronika D/A Prevodníky D/A prevodníkyEvo DAC Two 384/32 and DSD

Evo DAC Two 384/32 and DSD

Evo DAC Two

384/32 and DSD digitálno - analogový prevodník

Výrobca: M2TECH
Dostupnosť: skladom
459,- €
Do košíka

Evo DAC Two 384/32 and DSD

Novinka od M2TECH EVO DAC TWO, výrobca inovoval predchodcu Evo DAC , na EVO DAC TWO čím je séria produktov EVO úplne kompletná, sú k dispozícii všetky EVO komponenty v prevedení TWO. EVO DAC TWO sa v zásade odlišuje od predchodcu schopnosťou konverzie DSD súborov.


DXD and DSD conversion, 32 bits resolution on USB 2.0 Audio Class compliant port, coaxial and
optical S/PDIF inputs, single-ended outputs on gold-plated RCA females, IR remote control with
HID capability, same form factor of all Evo Two products, can be powered by the USB bus or by
any 7.5V to 15V power supply, Evo Supply Two recommended.

The Evo DAC Two is a very high value-for-money digital-to-analog converter capable of
converting DXD and DSD when driven by USB.
Its USB 2.0 Audio Class compliant port is natively supported (no driver needed) by OSX and
Linux. An ASIO-compliant driver for Windows is provided.
High precision, low-jitter clocks allow for exceptional detail resolution, maximizing the 32-bit
capability of the ESS Sabre ES9010K2M conversion IC.
The Evo DAC Two de-jitter feature allows for exceptionally good performance from coaxial and
optical connections.
The Evo DAC Two uses high quality polypropylene capacitors and a low-noise opamp in the
analog section for best sonic results.
The IR remote control allows for accessing all Evo DAC Two features (volume, balance, muting,
input selection and many other menu settings), as well as taking advantage of the HID protocol to
control the player on the computer without manually accessing the keyboard.
The Evo DAC Two can be powered from the USB bus in budget conscious setups, while better
performance can be obtained with a good power supply such as the Evo Supply Two.


PCM sampling frequency:      44.1 to 384kHz on USB
  44.1kHz to 192kHz on coax
  44.1kHz to 96kHz on optical
PCM resolution:      16 to 32 bits on USB
  16 to 24 bits on coaxial and optical
DSD sampling frequency:      2.8224 to 11.2896MHz (USB only)

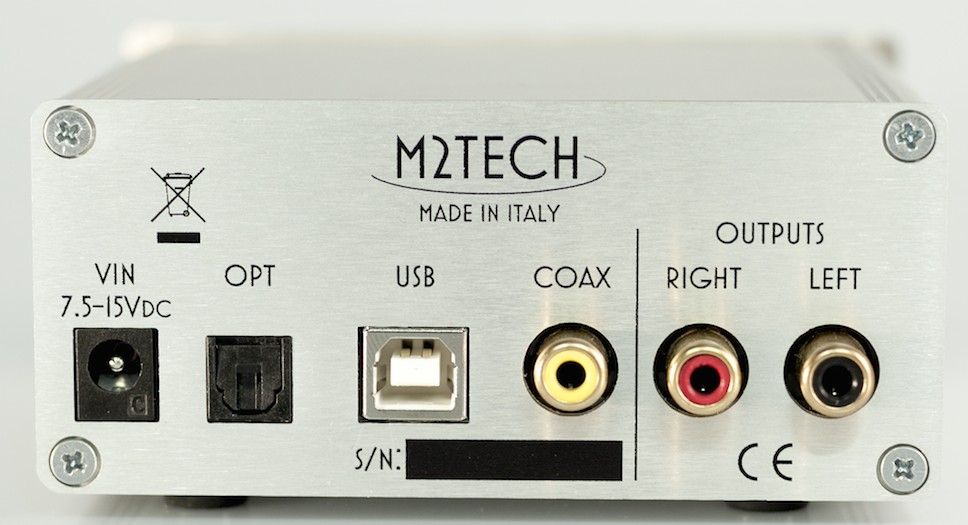

Inputs:      USB on USB type B female, coaxial on RCA female,
  optical on Toslink™
Outputs:      single-ended on RCA female
Output voltage:      2.5Vrms
THD+N:      0,0008%
SNR:      105dB (20Hz-20kz, 1kHz, A-weighted)
Clock precision:      10ppm (0-60°C)
Supply voltage:      7.5V to 15V, 230mA
Supply input:      5.5/2.1mm jack, positive on tip
Size:      105(w)x46(h)x104(d)mm
Weight:      250g
