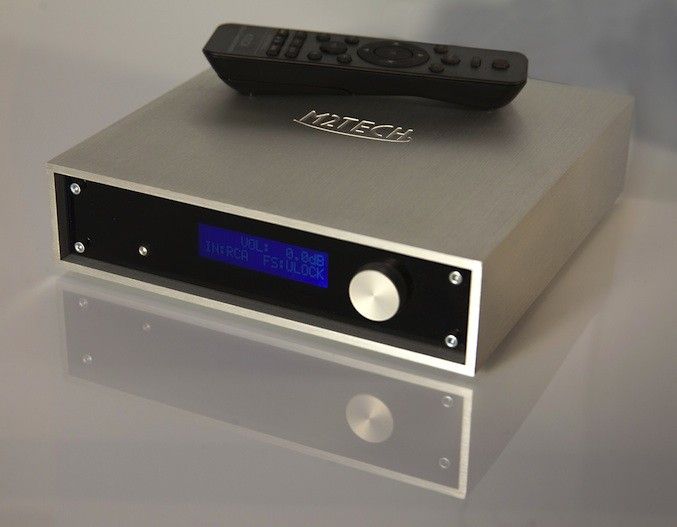

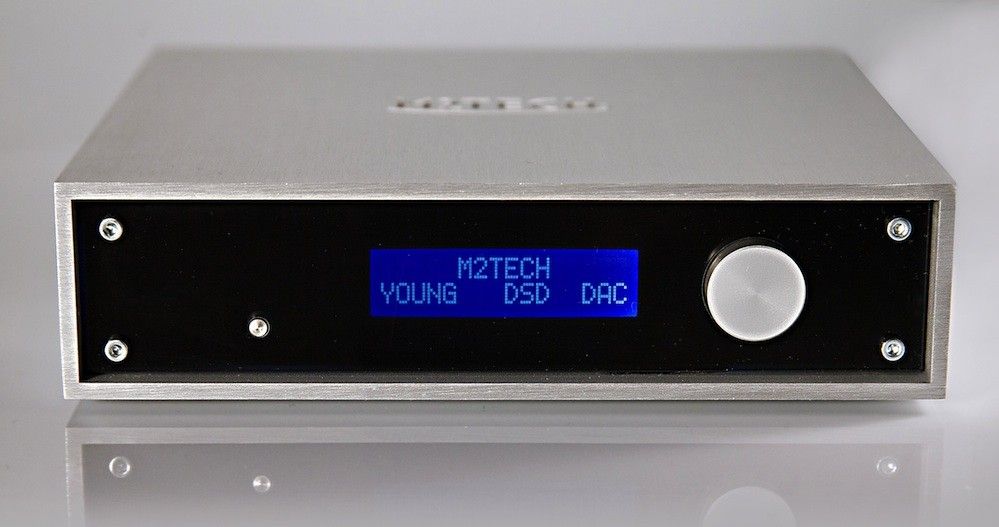

M2Tech D/A prevodník YOUNG DSD

Špičkový Hi-End DAC s vysokým rozlíšením až 32 bit / 384 kHz. DSD formát 64x, 128x**.

Vysoko výkonné oversampling filtre, vlastné digitálne filtre, stabilný oscilátor, nízký jitter a fázové skreslenie. Vlastné ovládače (win a mac, stiahnuteľné z webovej stránky výrobcu). Vstupy - optical Toslink, koax S/PDIF (RCA a BNC), AES/EBU, USB. Súčasťou balenia je sieťový napájací zdroj a USB kábel.

Tech špecifikácia:

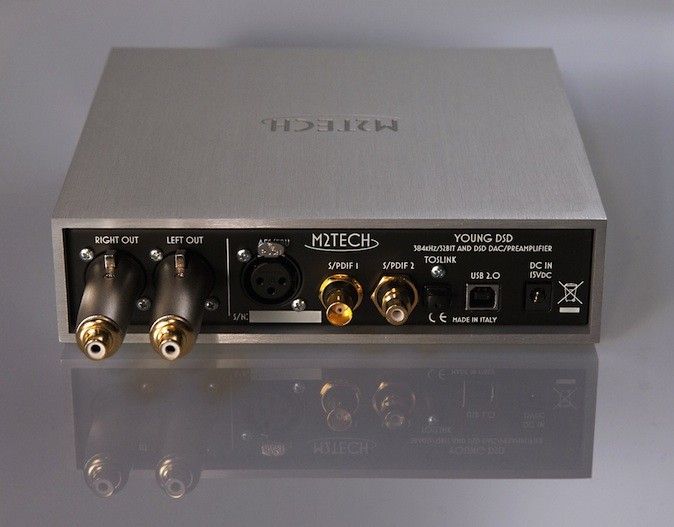

Inputs:
    AES/EBU on female XLR socket
    S/PDIF on female RCA socket
    S/PDIF on female BNC socket
    Optical on Toslink™ connector
    Async USB compatible with USB Audio Device
    Class 2/1 “B” type female USB connector

Outputs:
    Balanced analog on gold-plated male XLR connectors

Power input:
5.5/2.1mm jack with positive on tip

Output voltage:
    2.7Vrms @0dBFS (single-ended with adaptors, “normal”)
    5.4Vrms @0dBFS (single-ended with adaptors, “high”)
    5.4Vrms @0dBFS (balanced, “normal”)
    10.8Vrms @0dBFS (balanced, “high”)

Output impedance:
    100Ohm (single ended with adaptors)
    200Ohm (bilanciato)

Signal-to-noise ratio:
    118dB (0dBFS, balanced, “A”-weighted)
    114dB (0dBFS, single-ended, “A”-weighted)

THD+N:
    0.0008% (-3dBFS, balanced, 1kHz)
    0.003% (-3dBFS, single-ended, 1kHz)
Sampling frequency PCM:
    44.1, 48, 88.2, 96, 176.4*, 192*, 352.8**, 384**kHz
DSD formats 64x, 128x**
PCM resolution:
    16 to 32 bit (USB)
    16 to 24 bit (other inputs)
Volume setting:
    0dB to -96dB in 0.5dB steps
Muting:
    -20dB
Balance setting:
    +/-6dB in 1dB steps
Phase:
    0°, 180°
Automatic switch-off:
    10 to 240 minutes in 10 minutes steps, plus disabled
Supply:
    15VDC 300mA
Power consumption:
    4.5VA
Size:
    200x50x200mm (w x h x d)
Weight:
    1.7kg (device only)
    2.5kg (packed)

* Not on Toslink™
** USB Only
